Home >> Dodge and Ram >> 2023 >> ProMaster 2500 >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> 3.6L - DTCS P2503 To U0402 >> DTC Troubleshooting >> P258A-Electric Vacuum Pump Circuit >> Notes

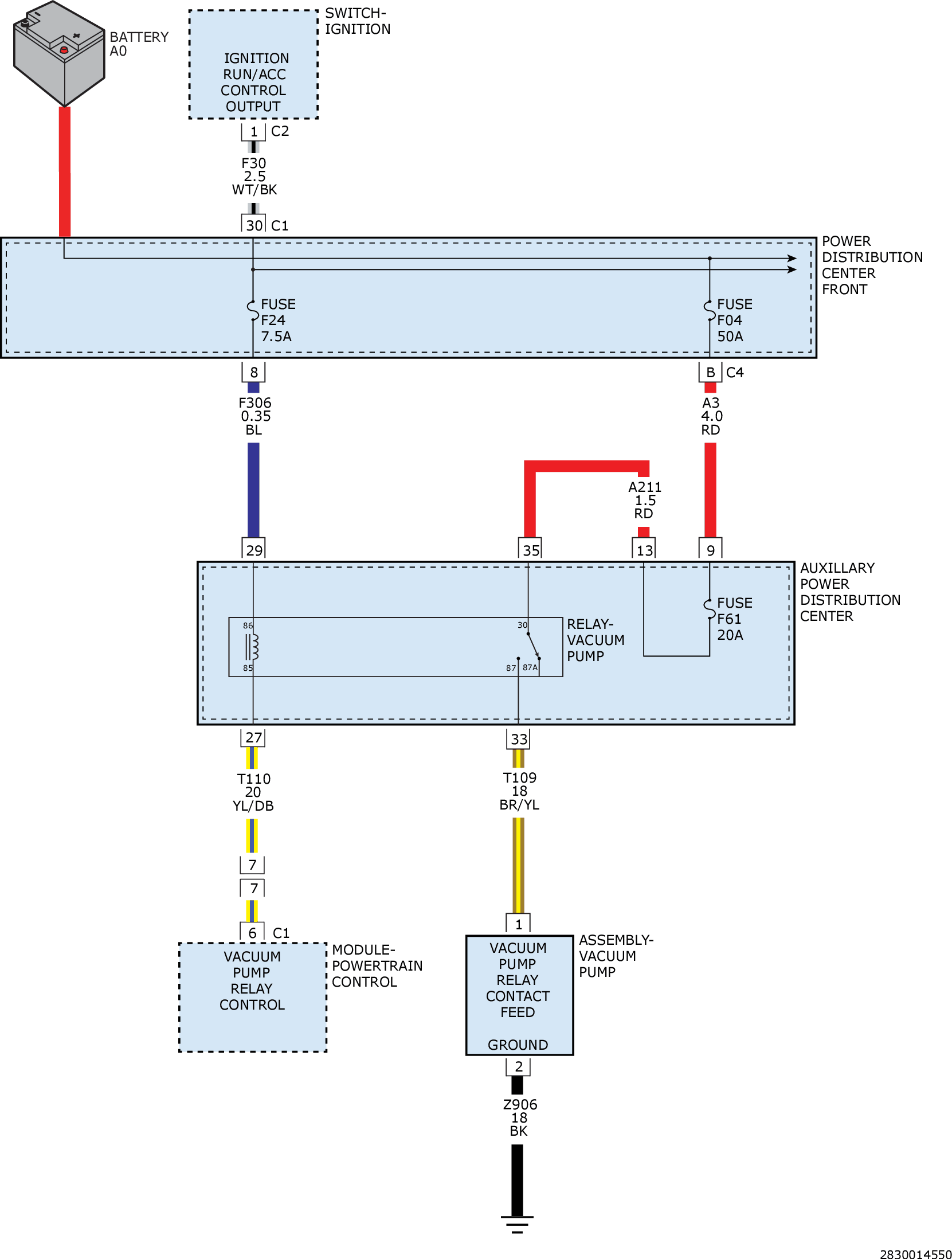

P258A-Electric Vacuum Pump Circuit: Notes

GC0161494

Courtesy of CHRYSLER GROUP, LLC
