Tube, Fuel Tank Filler: Removal

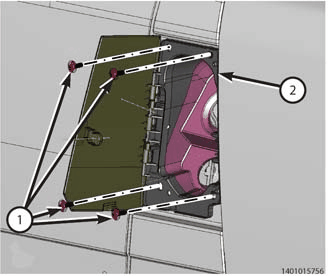

GC0160456Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate negative battery cable at battery.
  2. Remove the fuel door housing screws (1).

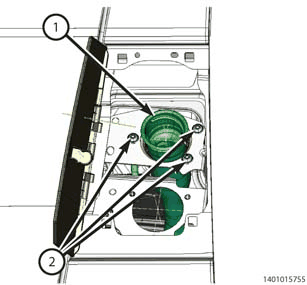

    GC0160325Courtesy of CHRYSLER GROUP, LLC
  3. Remove fuel fill tube bracket screws (2).
  4. Raise the vehicle.
    GC0160722Courtesy of CHRYSLER GROUP, LLC
  5. Remove the filler hose shield (2).
    GC0160288Courtesy of CHRYSLER GROUP, LLC
  6. Remove the filler neck connecting hose at the filler tube (3).
  7. Disconnect vent tube hose (5).
  8. Remove the gasket (4) and fuel fill tube (3) from vehicle.

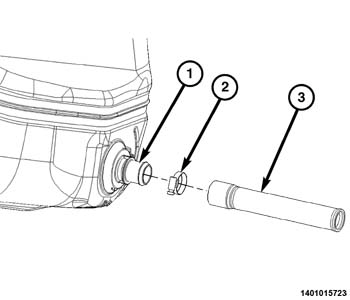

    GC0160279Courtesy of CHRYSLER GROUP, LLC
  9. If required, remove the filler neck connecting hose (3).
