Pump, Engine Oil: Inspection

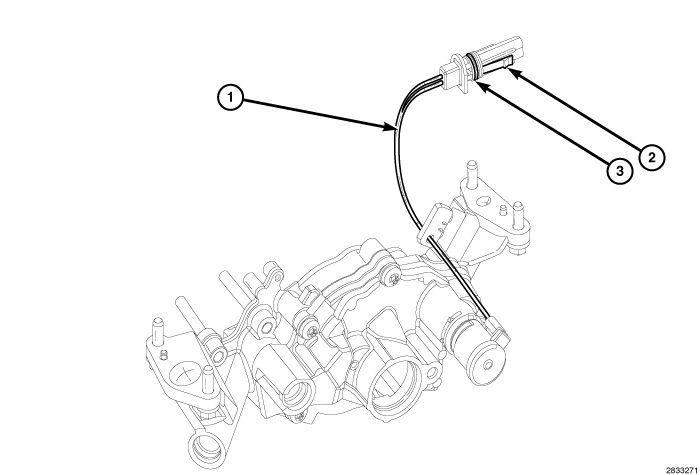

GC0144375Courtesy of CHRYSLER GROUP, LLC
NOTE:

The Oil pump is released as an assembly. The assembly includes both the pump and the solenoid. There are no serviceable sub-assembly components. In the event the oil pump or solenoid are not functioning or out of specification they must be replaced as an assembly.

  1. Inspect the solenoid wires (1) for cuts or chafing.
  2. Inspect the integrity of the connector retention lock tab (2).
  3. Inspect the condition of the connector O-ring seal (3).
