Pan, Oil: Description

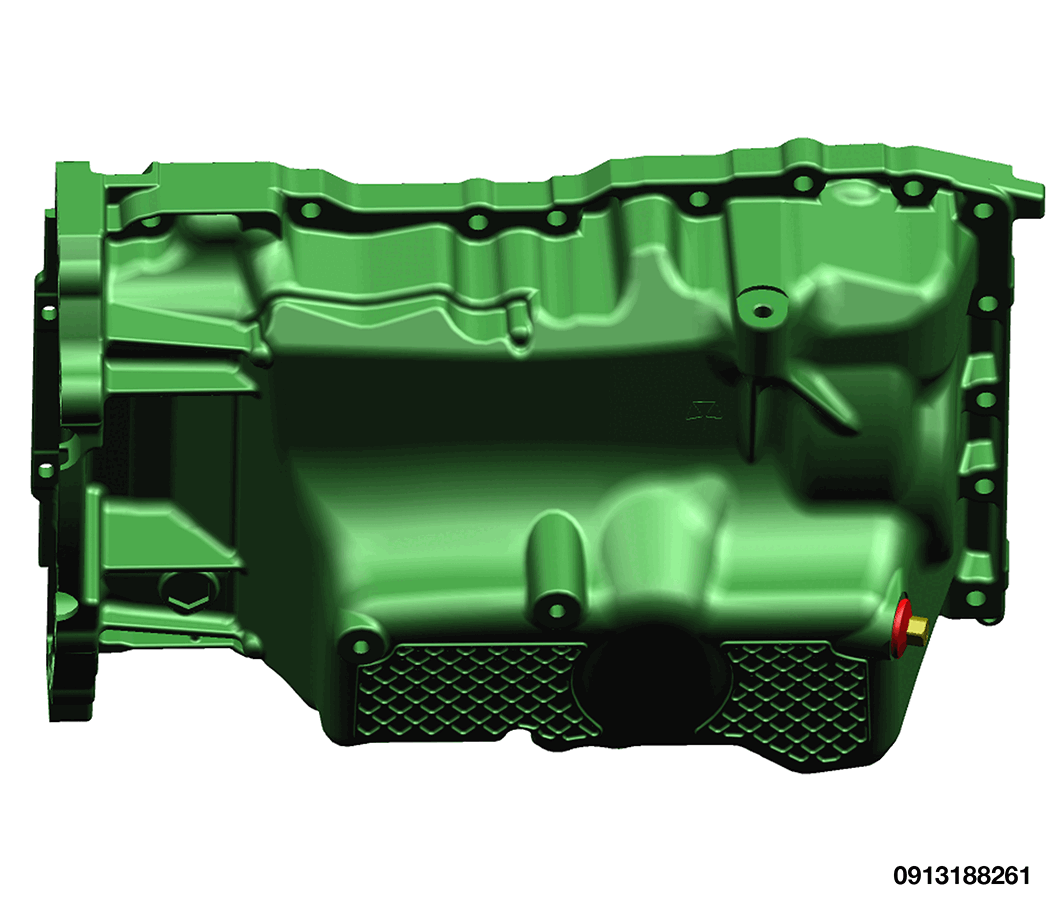

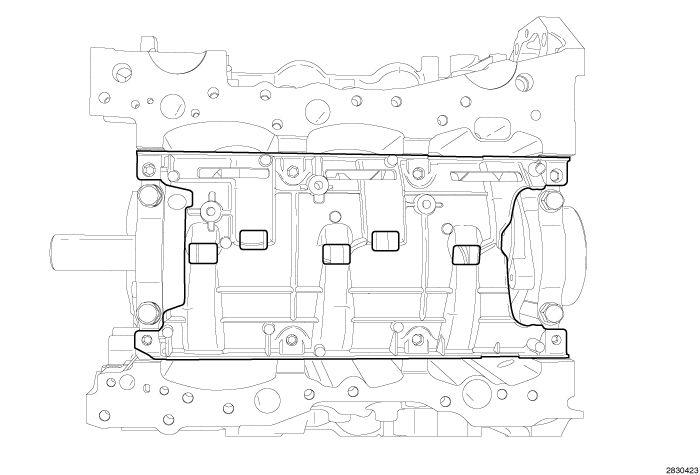

The oil pan is a one piece cast aluminum. The oil pan is sealed using Mopar® Threebond Engine RTV Sealant.
The high pressure die cast aluminum windage tray is mounted to the main bearing caps and is designed to keep oil off of the connecting rods as the crankshaft rotates. When the oil is kept off the connecting rods, the engine rotates easier and oil foaming decreases. Like the oil pan, the windage tray is designed to stiffen the lower end of the engine. The tray is directional and the main bearing cap bolts hold it in place.
