Jet, Piston Oil Cooler: Removal

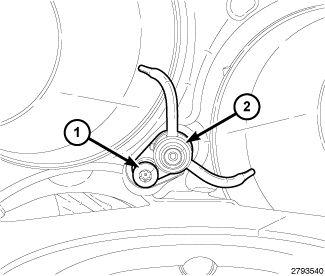

GC0144300Courtesy of CHRYSLER GROUP, LLC
NOTE:

Piston oil cooler jet for cylinders one/two shown. Piston oil cooler jets for cylinders three/four and five/six are similar.

  1. Remove the oil pump. Refer to PUMP, ENGINE OIL, REMOVAL .
    GC0144278Courtesy of CHRYSLER GROUP, LLC
  2. Remove the eight main bearing cap bolts from the windage tray in the sequence shown and remove the windage tray (1).
  3. Rotate the crankshaft to expose piston oil cooler jet being serviced.
  4. Remove the bolt (1) and the piston oil cooler jet(s) (2) from the engine block.
    GC0144299Courtesy of CHRYSLER GROUP, LLC
  5. Remove and discard the O-ring seal (1) from the piston oil cooler jet(s).
