Insulator, Engine Mount, Left: Removal

  1. Carefully position a floor jack under transmission to support the transmission.
  2. Remove the drain tube.

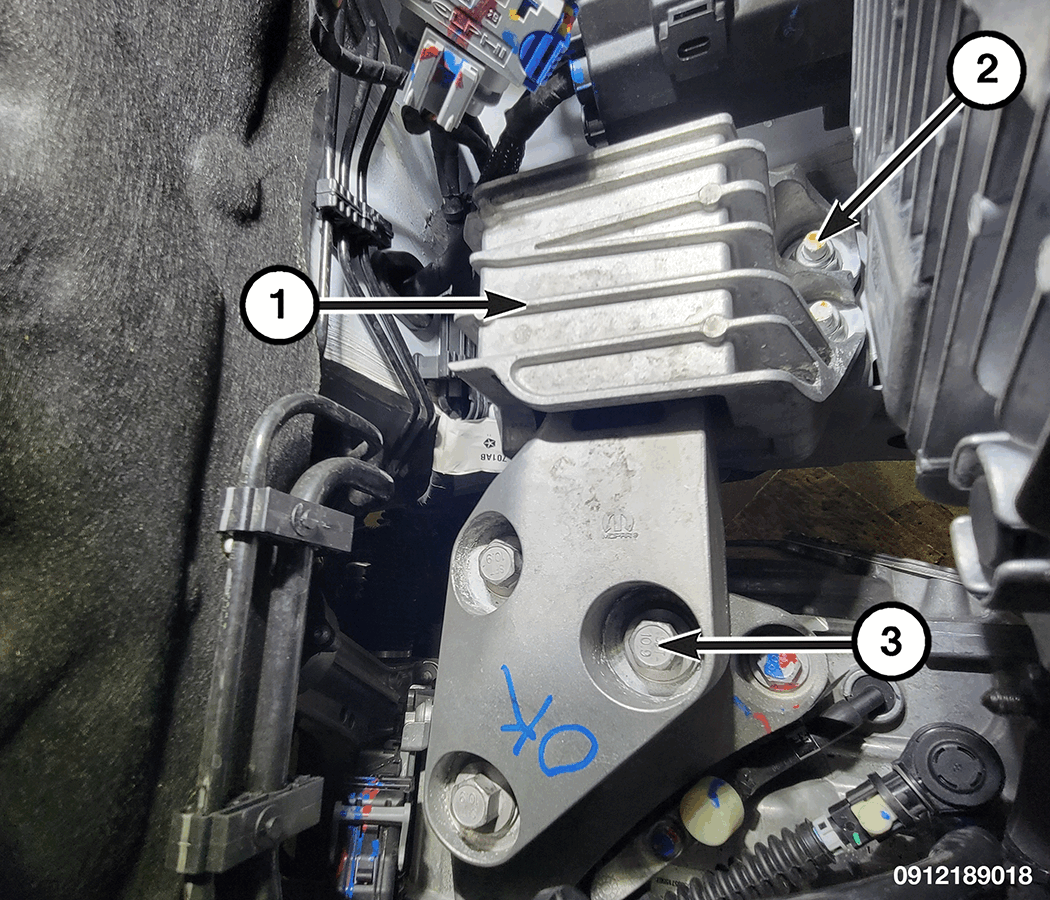

    GC0203989Courtesy of CHRYSLER GROUP, LLC
  3. Remove the left mount to bracket bolts (3).
  4. Remove the left mount to frame rail nuts (2) and the left mount (1).

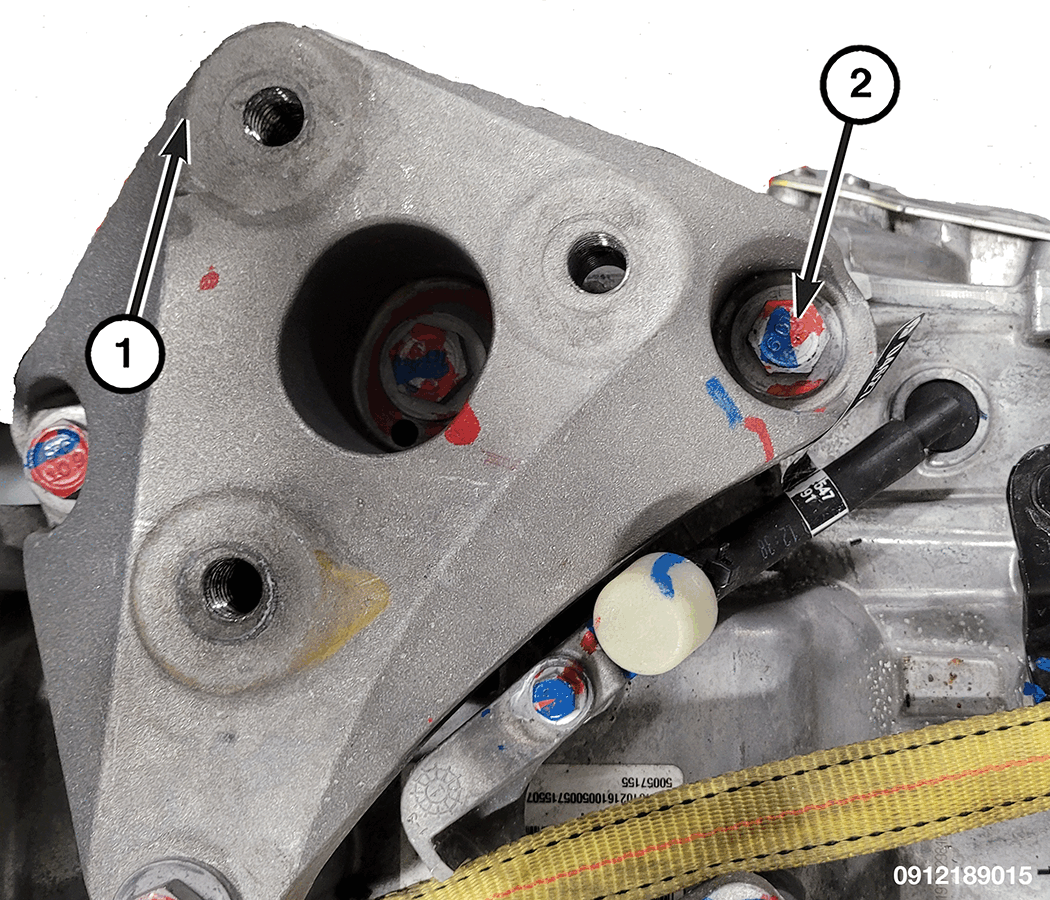

    GC0203932Courtesy of CHRYSLER GROUP, LLC
  5. If required, remove the left mount bracket to transmission bolts (2) and the left mount bracket (1).
