Seal, Crankshaft Oil, Front: Installation

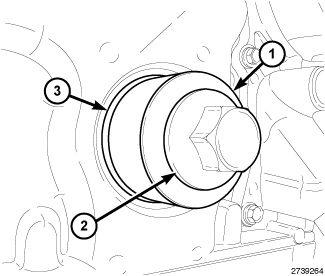

GC0144223Courtesy of CHRYSLER GROUP, LLC
  1. Position the front crankshaft oil seal (3) to engine timing cover.
    NOTE:

    The front crankshaft oil seal must be installed in the same position as noted during removal. The stamped part number will face the front of the engine.

  2. Align the Front Crankshaft Seal Installer (1) to the flywheel key on the crankshaft and against the front crankshaft oil seal (3).

    (Special tool #10199, Installer, Crankshaft Front Oil Seal)

    CAUTION:

    Only tighten the crankshaft vibration damper bolt until the oil seal is seated in the cover. Overtightening of the bolt can crack the front timing cover.

  3. Install and tighten the crankshaft vibration damper bolt (2) until the crankshaft oil seal is seated in the engine timing cover.
  4. Install the crankshaft vibration damper. Refer to DAMPER, VIBRATION, INSTALLATION .
  5. Install the accessory drive belt. Refer to BELT, SERPENTINE, INSTALLATION .
