Engine Block: FLEXPLATE: Removal

  1. Remove the transmission. Refer to REMOVAL .

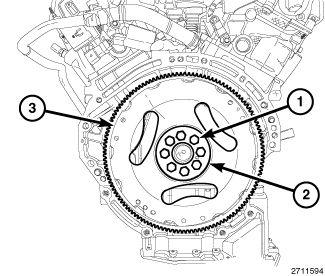

    GC0144180Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    Do not use an impact socket or a thick walled socket when removing or installing the flexplate retaining bolts, damage to the crankshaft, internal engine or the transmission may occur.

  2. Remove and discard the flex plate bolts (1).
  3. Remove the flexplate (3).
