Bank 2 Solenoid 2

  1. Inspect the Variable Valve Lift (VVL) solenoid O-ring seal and replace if necessary.

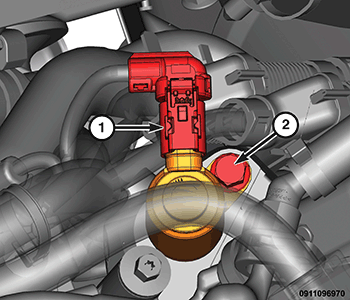

    GC0173713Courtesy of CHRYSLER GROUP, LLC
  2. Insert the VVL solenoid into the cylinder head.
  3. Install the retaining bolt (2) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .
  4. Connect the wire harness connector (1) to the VVL solenoid.

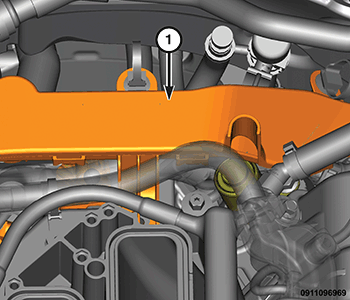

    GC0173761Courtesy of CHRYSLER GROUP, LLC
  5. Install the rear engine wire harness (1).
  6. Install the upper intake manifold. Refer to MANIFOLD, INTAKE, INSTALLATION .
