Air Cleaner: Installation

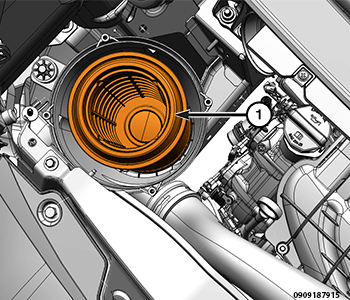

GC0203851Courtesy of CHRYSLER GROUP, LLC
  1. Install the air cleaner element (1) into the air cleaner housing.

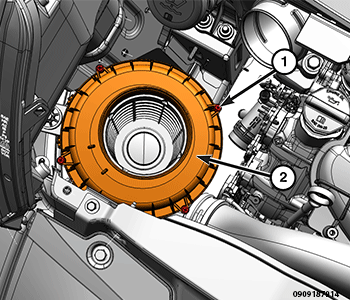

    GC0203943Courtesy of CHRYSLER GROUP, LLC
  2. Seat the cover (2) onto the housing and securely tighten the housing cover screws (1).

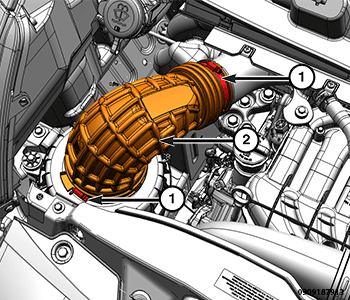

    GC0204029Courtesy of CHRYSLER GROUP, LLC
  3. Install the air intake hose (2) and securely tighten the clamps (1).
