115 Volt Outlet: Removal

  1. Remove the instrument panel trim panel. Refer to PANEL, INSTRUMENT PANEL TRIM, REMOVAL .

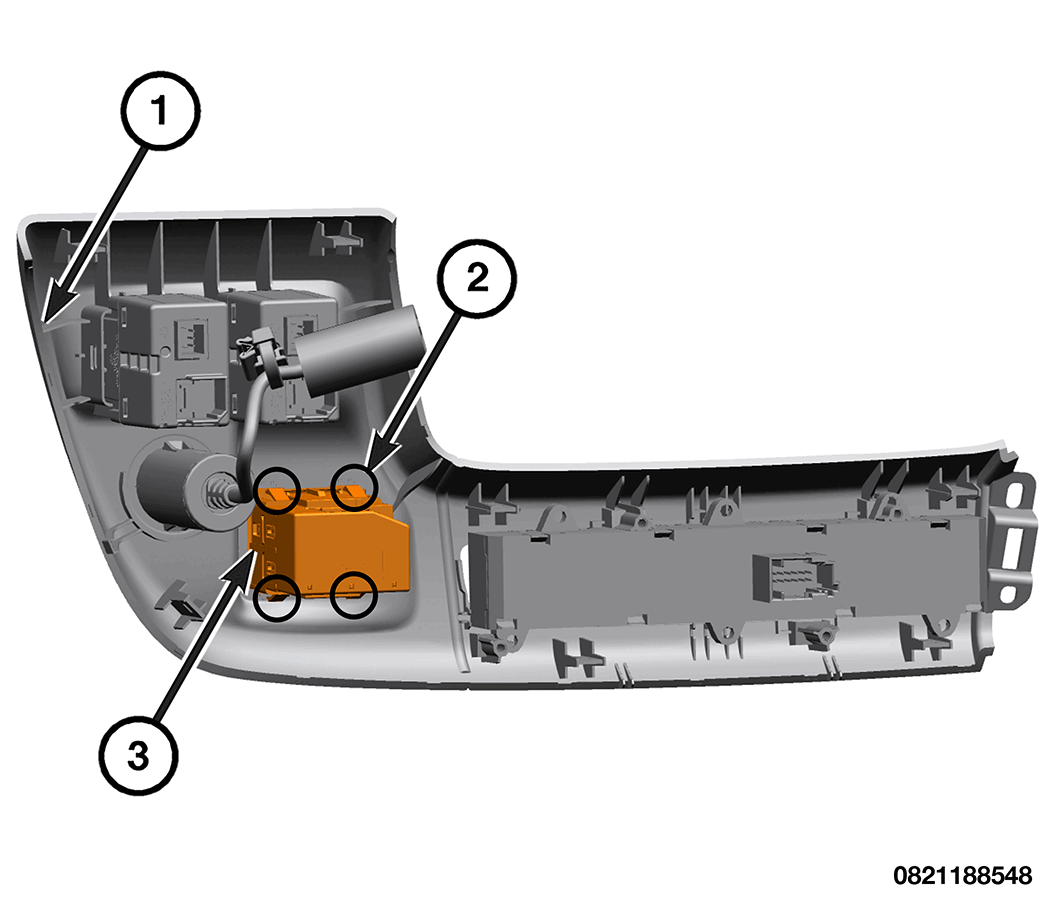

    GC0204106Courtesy of CHRYSLER GROUP, LLC
  2. Working on the backside of the instrument panel trim panel (1), release the retaining tabs (2) on the perimeter of the 115 volt outlet (3) to release it from the instrument panel trim panel (1).
