Tray, Battery: Installation

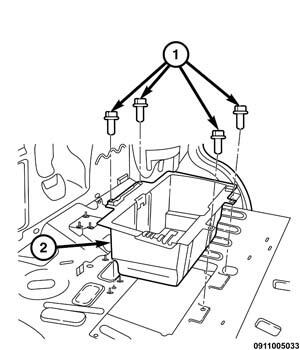

GC0160519Courtesy of CHRYSLER GROUP, LLC
  1. Position the battery tray into the floor of the vehicle and tighten the fasteners (1) to the proper specifications. Refer to TORQUE SPECIFICATIONS .
  2. Install the battery. Refer to BATTERY, INSTALLATION .
  3. Connect the battery negative cable.
