Horn System (Service Information): Horn: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the negative battery cable.
2. Remove the right front fender wheel house splash shield from the vehicle. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .

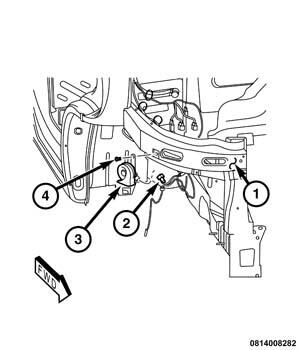

3. Locate the horn and mounting bracket (3) on the outboard side of the right front fender load beam (1) above the right front fender wheel house.
4. Disconnect the horn wire harness connector (2) from the back of the horn (3).
5. Remove the fastener (4) that secures the horn mounting bracket to the load beam.
6. Remove the horn and mounting bracket from the load beam as a unit.
