Switch, EVIC Control: Installation

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

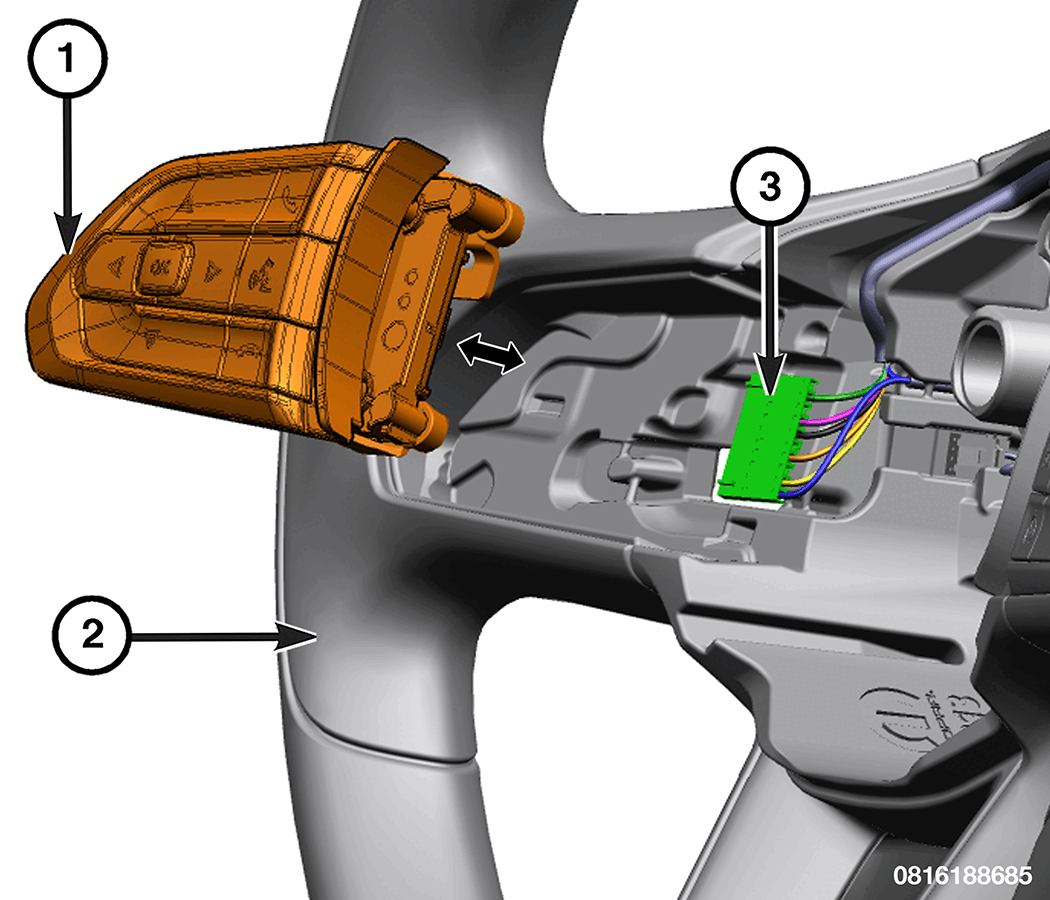

GC0204090Courtesy of CHRYSLER GROUP, LLC
  1. Position the EVIC Control switches (1) to the steering wheel armature (2).
  2. Connect the wire harness connector (3) and install the EVIC control switches (1) into the steering wheel (2).
  3. Install the driver side airbag. Refer to AIR BAG, DRIVER, INSTALLATION .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
