Home >> Dodge and Ram >> 2023 >> ProMaster 2500 >> Repair and Diagnosis >> Electrical >> Gauges >> Instrument Cluster (Service Information) >> Pod, Switch >> Removal

Pod, Switch: Removal

  1. Remove the instrument panel trim panel. Refer to PANEL, INSTRUMENT PANEL TRIM, REMOVAL .

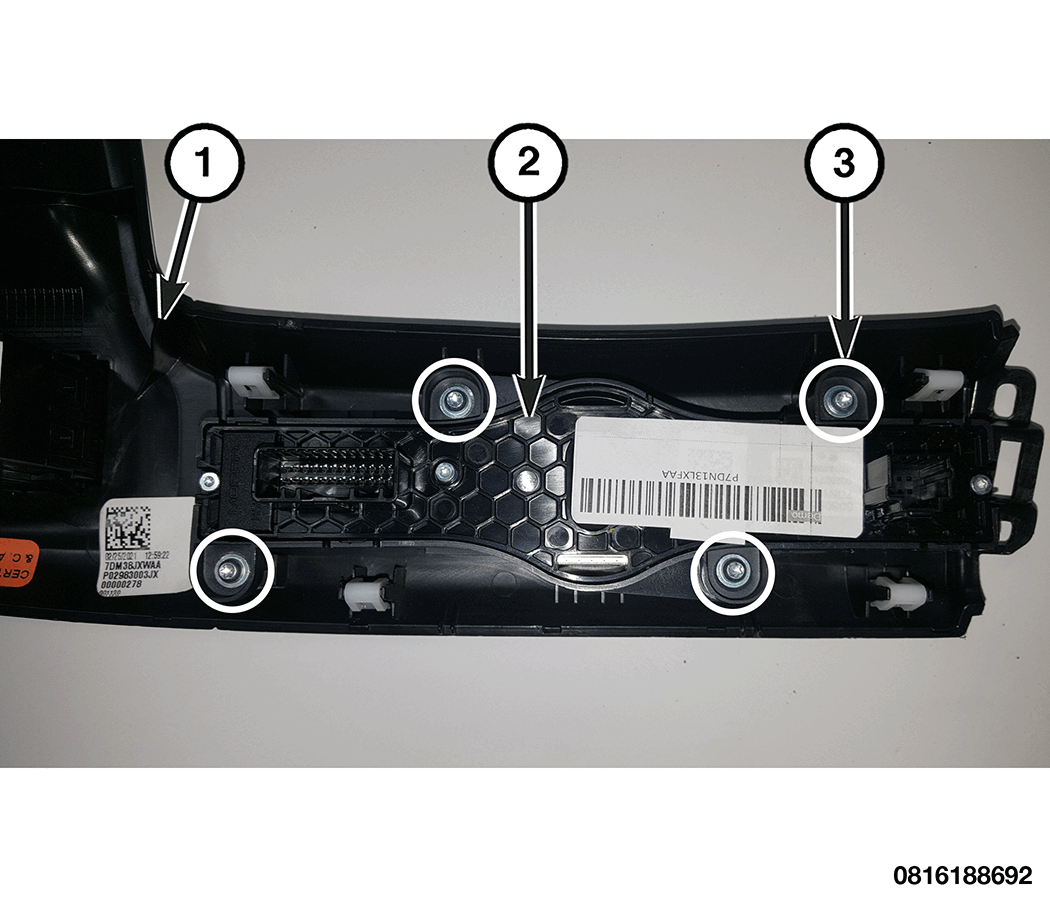

    GC0203912Courtesy of CHRYSLER GROUP, LLC
  2. Working on the backside of the instrument panel trim panel (1), remove the fasteners (3) on the switch pod (2) and remove it from the instrument panel trim panel (1).
