Weatherstrip, Glass Run: Installation

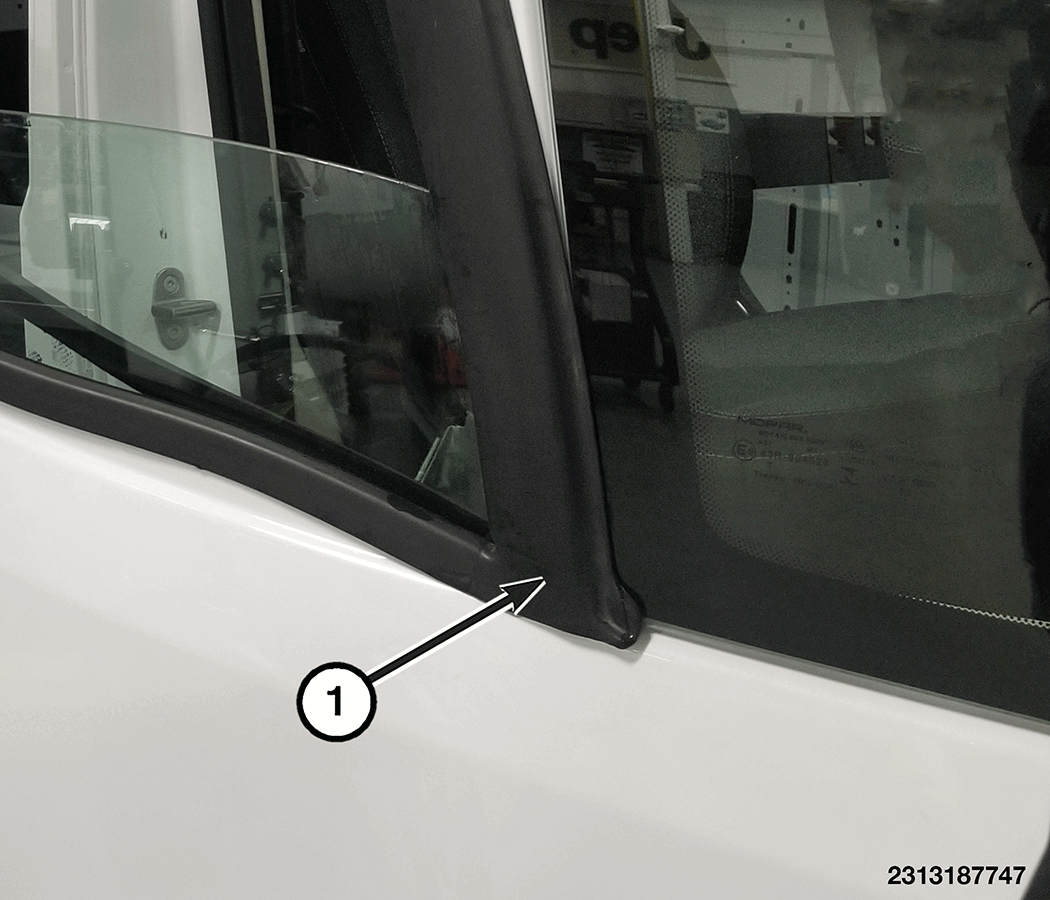

GC0204058Courtesy of CHRYSLER GROUP, LLC
  1. Starting at the front lower corner of the window, press the corner of the seal (1) into the window frame.
    NOTE:

    Use soapy water to aid in the installation of the window seal.

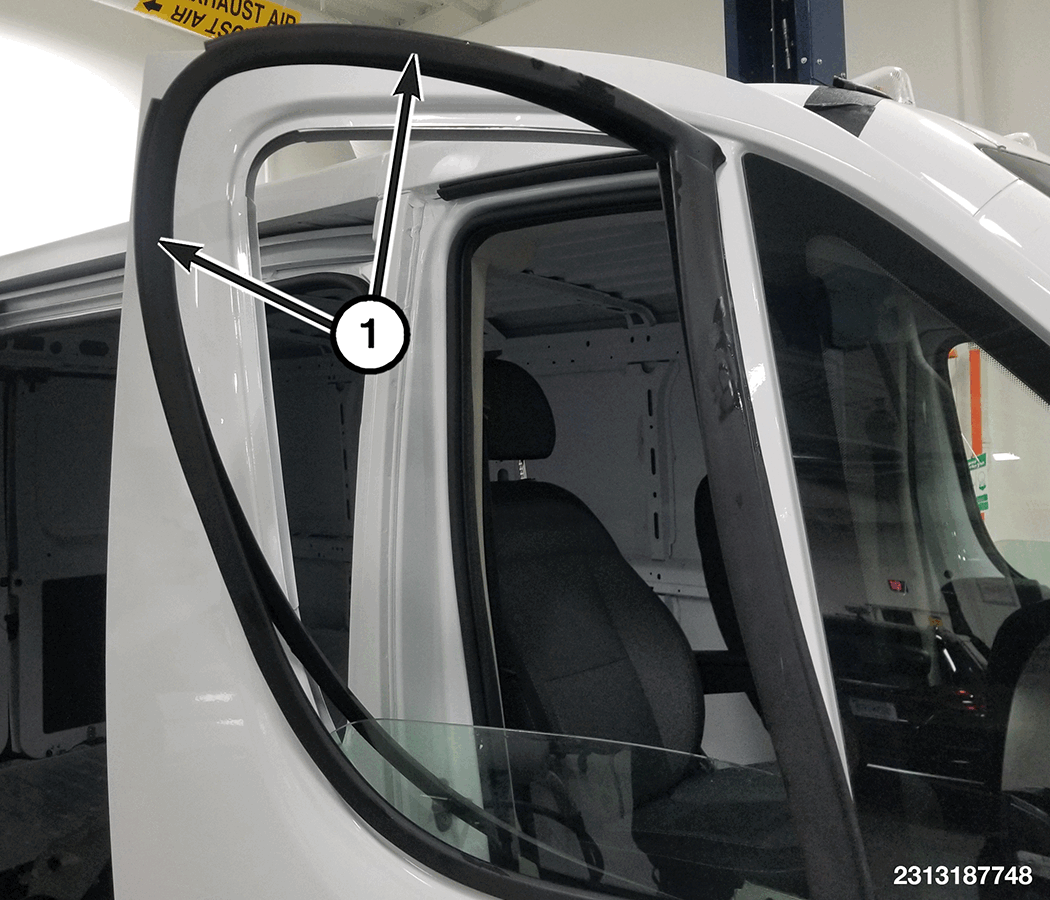

    GC0203972Courtesy of CHRYSLER GROUP, LLC
  2. Install the seal (1) into the window frame.
  3. Close the window.
