Glass, Quarter: Removal: Notes

Courtesy of CHRYSLER GROUP, LLC

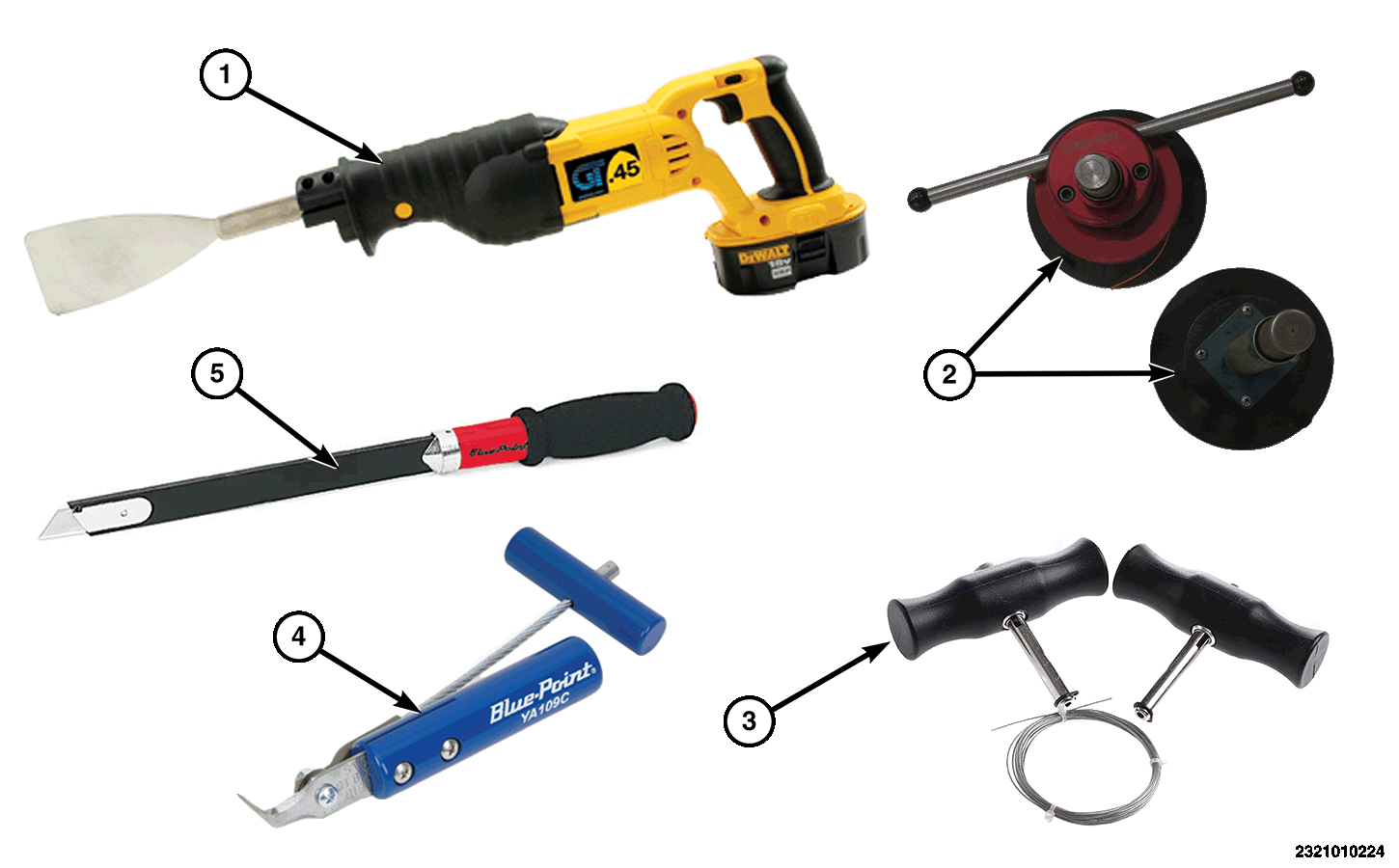

Common glass tools needed to remove Stationary Glass

• 1 - Extractor® Express™ or equivalent, equipped with flat blade
• 2 - Two handled wire type cut out tool
• 3 - Cold knife equipped with a 25 mm (1.0 in.) blade
• 4 - Cold knife equipped with an 38 mm (1.5 in.) blade
• 5 - Long knife
