Stationary Glass: BACKLITE: Installation

Courtesy of CHRYSLER GROUP, LLC

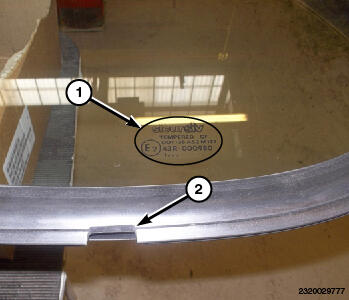

1. Position the glass molding onto the glass with the drain (2) at the lower left corner near the glass markings (1) as illustrated.

   Courtesy of CHRYSLER GROUP, LLC

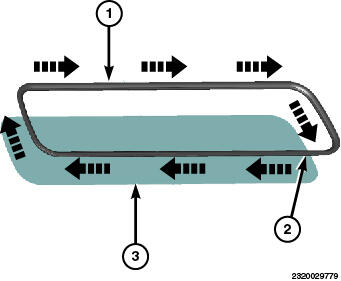

2. Starting at the drain (2) work the molding (1) around the perimeter of the glass (3).

   Courtesy of CHRYSLER GROUP, LLC

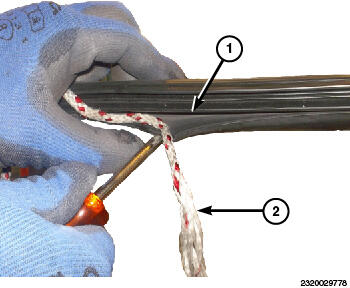

3. Using a length of small rope (2) or equivalent, place the rope into the grove around the perimeter of the molding (1) to aid installation.

   Courtesy of CHRYSLER GROUP, LLC

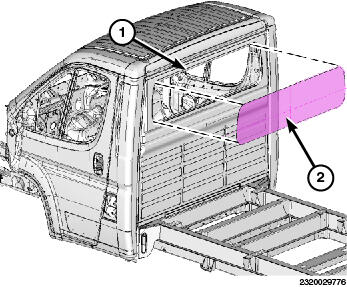

4. Place the bottom of glass (2) into the window opening (1).
5. With a helper holding the glass from the outside, work the molding over the window opening lip using the rope to aid in this process.
6. Remove the rope as you work the molding over the lip and seat the glass fully into the opening.
