Sleeve, Headrest, Front: Installation

  1. Install the headrest guides.
  2. Secure the lower J-clip retainer.

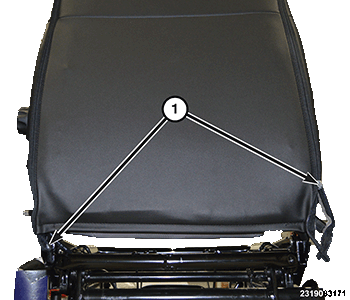

    GC0171014Courtesy of CHRYSLER GROUP, LLC
  3. Close the side zippers (1).
  4. Install the headrest.
