Swivel Seat
NOTE:
It is not necessary to remove the seat from the vehicle. Rotate the seat as necessary when removing components.
- Raise the seat to its highest position.

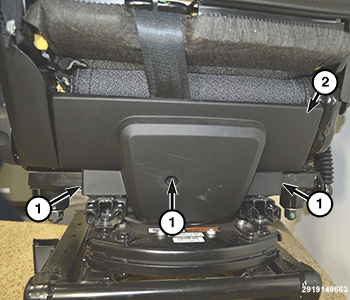

- Remove the screws (1) and the seat belt retractor cover (2).
- Using a small flat bladed tool, remove the seat adjuster handle cap.

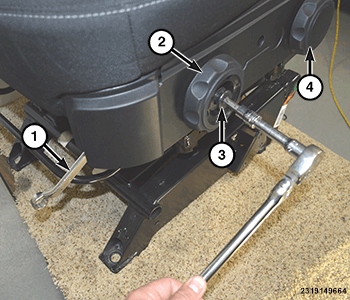

- Use the proper sized wrench (1) to hold nut under the seat, then remove the bolt (3).
- Pull off the front adjuster handle (2). Remove the rear adjuster handle (4) the same way.

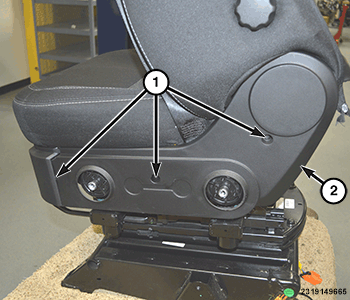

- Remove the screws (1) and then remove the outboard side shield (2).

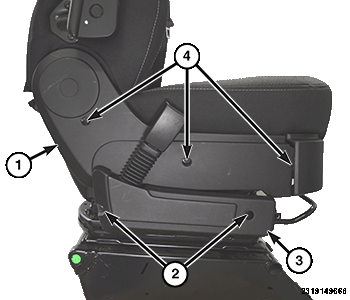

- Remove the screws (2) and the buckle cover (3).
- Remove the screws (4) and then remove the inboard side shield (1).
