Non Swivel Seat

GC0160733Courtesy of CHRYSLER GROUP, LLC
  1. By hand, pull firmly on the recliner knob (1) to remove.

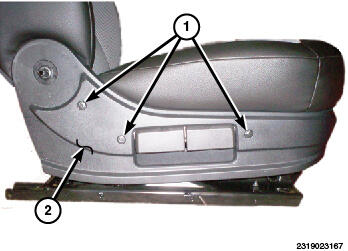

    GC0160368Courtesy of CHRYSLER GROUP, LLC
  2. Remove the screws (1) and loosen the side shield (2).

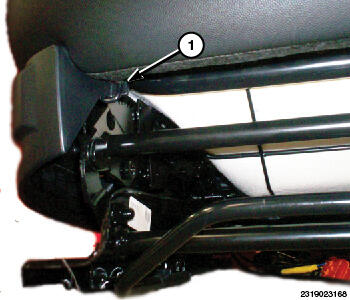

    GC0160691Courtesy of CHRYSLER GROUP, LLC
  3. Release the side shield front tab (1) and remove the OUTBOARD side shield.

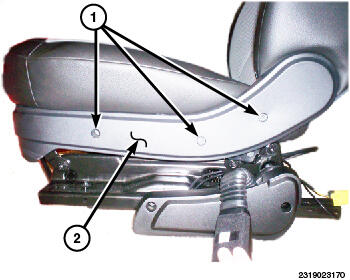

    GC0160400Courtesy of CHRYSLER GROUP, LLC
  4. Remove the screws (1) and loosen the side shield (2).
    GC0160587Courtesy of CHRYSLER GROUP, LLC
  5. Release the side shield front tab (1) and remove the INBOARD side shield.

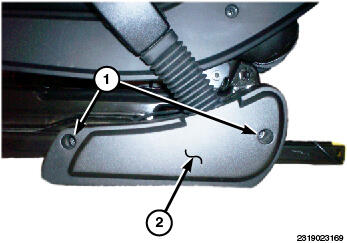

    GC0160716Courtesy of CHRYSLER GROUP, LLC
  6. Remove the screws (1) and the lower side shield (2).
