Swivel Seat

WARNING:

Disable the airbag system before attempting any component diagnosis or service of the front seats, when equipped with front seat air bags. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions may result in accidental airbag deployment and possible serious or fatal injury.

  1. Place the seat into the full forward position.

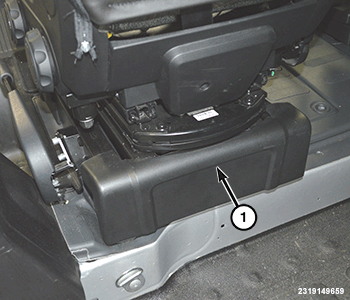

    GC0183985Courtesy of CHRYSLER GROUP, LLC
  2. Pull at the top of the rear riser panel (1) to loosen it, then lift and remove.
  3. Place the seat into the full rearward position.

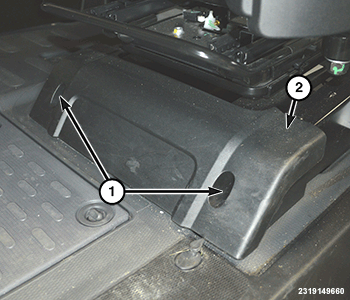

    GC0183970Courtesy of CHRYSLER GROUP, LLC
  4. Remove the two screws (1) and the front riser cover (2).

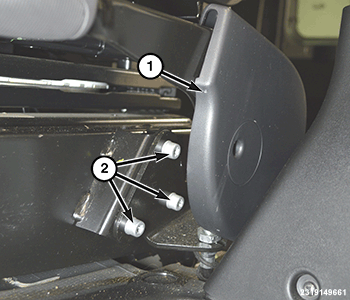

    GC0183990Courtesy of CHRYSLER GROUP, LLC
  5. Remove the three bolts (2) and loosen the parking brake assembly (1) from the seat riser.

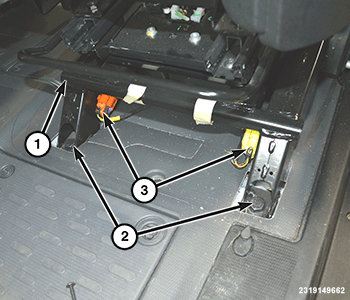

    GC0183993Courtesy of CHRYSLER GROUP, LLC
  6. Disconnect the electrical connectors (3), and unclip them from the seat riser.
  7. Remove the two bolts (2), then pull the seat assembly (1) forward to unhook the rear feet and remove the seat.
    NOTE:

    The seat is EXTREMELY HEAVY  and will require additional help to remove it from the vehicle.
