Non Swivel Seat

GC0183990Courtesy of CHRYSLER GROUP, LLC
WARNING:

Disable the airbag system before attempting any component diagnosis or service of the front seats, when equipped with front seat air bags. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions may result in accidental airbag deployment and possible serious or fatal injury.

  1. Place the seat into the full rearward position.
  2. Remove the three bolts (2) and loosen the parking brake assembly (1) from the seat riser, if equipped.
    GC0160270Courtesy of CHRYSLER GROUP, LLC

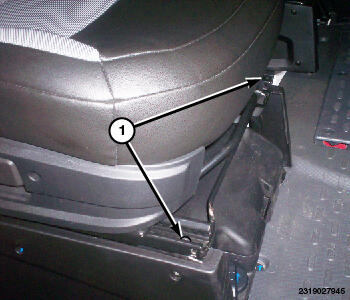

  3. Remove the front fasteners (1).
    GC0160207Courtesy of CHRYSLER GROUP, LLC

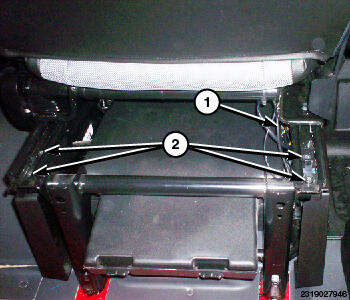

  4. Disconnect the electrical connectors (1).
  5. Pull the seat assembly forward to unhook the rear feet and remove the seat.
