Non Swivel - Passenger

GC0173228Courtesy of CHRYSLER GROUP, LLC
WARNING:

Disable the airbag system before attempting any component diagnosis or service of the front seats, when equipped with front seat air bags. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

  1. Remove the seat.
  2. Remove the headrest.
  3. Remove the side shields. Refer to SIDE SHIELDS, SEAT CUSHION, FRONT, REMOVAL .
  4. Remove the screw (3) and the retractor cover (2).
  5. Remove the center seat belt buckle bolt (1).
    GC0173235Courtesy of CHRYSLER GROUP, LLC
  6. Release the lower J-clips (2) and the side zippers (1).
    GC0173214Courtesy of CHRYSLER GROUP, LLC
  7. Lift the seatback cover (1) and remove the cardboard backer panel (2).
    GC0173217Courtesy of CHRYSLER GROUP, LLC
  8. Release the clips (2) and remove the armrest back panel (1).
    GC0173231Courtesy of CHRYSLER GROUP, LLC
  9. Fold the armrest down and remove the screws (1).
  10. Using a trim stick or equivalent, lift at the front of the armrest top cover (3) and remove the armrest top cover (2).
    GC0173219Courtesy of CHRYSLER GROUP, LLC
  11. Remove the armrest by pulling back on the release bar (2), and pulling the armrest forward.
    NOTE:

    There are springs at the notches (3), and can be removed to make the armrest removal easier.

    GC0173221Courtesy of CHRYSLER GROUP, LLC
  12. This graphic is for clarity of how the release bar (1) needs to be released, and the direction of removal for the armrest pivot (2).
    GC0173237Courtesy of CHRYSLER GROUP, LLC

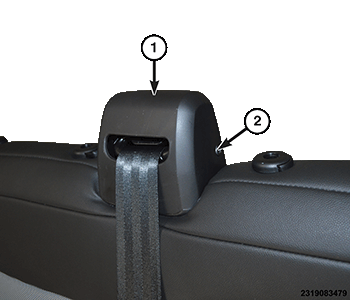

  13. Remove the screws (2) and the top seat belt cover (1).
    GC0173201Courtesy of CHRYSLER GROUP, LLC

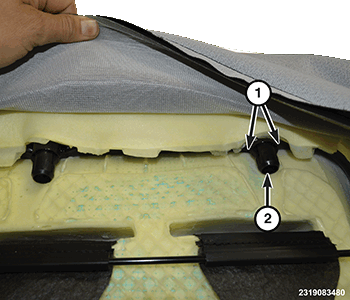

  14. Reach up and squeeze the tabs (1), and remove the headrest guides (2).
    GC0173199Courtesy of CHRYSLER GROUP, LLC
  15. Disconnect the wire harness connector for seat heater, if equipped.

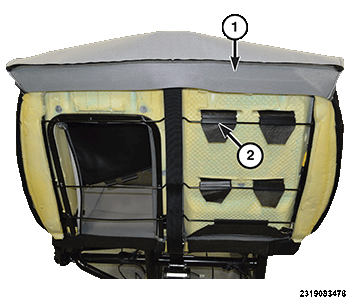

  16. Lift the seatback cover (1), and release all the J-clip (2).
    GC0173204Courtesy of CHRYSLER GROUP, LLC

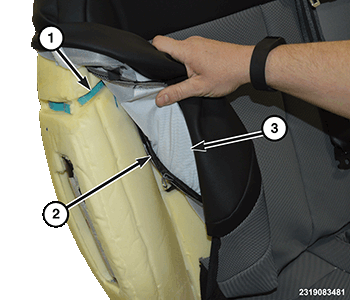

  17. Release the hook and loop fasteners (1), remove the hog rings (2) and the seatback trim (3).
