Passenger Seats

GC0173228Courtesy of CHRYSLER GROUP, LLC
WARNING:

Disable the airbag system before attempting any component diagnosis or service of the front seats, when equipped with front seat air bags. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

  1. Remove the seat. Refer to SEAT, FRONT, REMOVAL .
  2. Remove the side shields. Refer to SIDE SHIELDS, SEAT CUSHION, FRONT, REMOVAL .

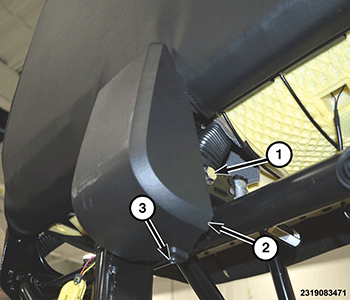

  3. Remove the screw (3) and the retractor cover (2).
    GC0173235Courtesy of CHRYSLER GROUP, LLC

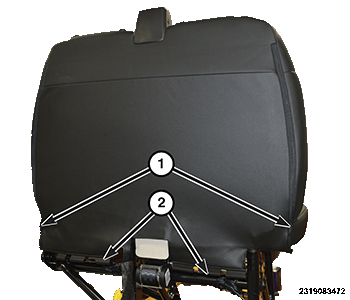

  4. Release the lower J-clips (2) and the side zippers (1).
    GC0173214Courtesy of CHRYSLER GROUP, LLC

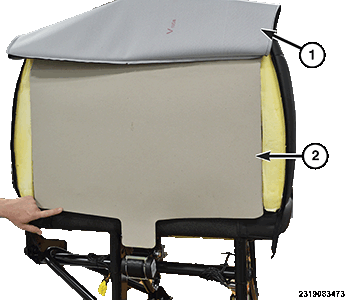

  5. Lift the seatback cover (1) and remove the cardboard backer panel (2).
    GC0173217Courtesy of CHRYSLER GROUP, LLC

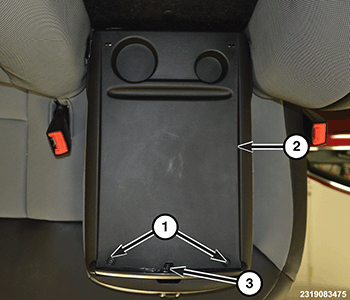

  6. Release the clips (2) and remove the armrest back panel (1).
    GC0173231Courtesy of CHRYSLER GROUP, LLC

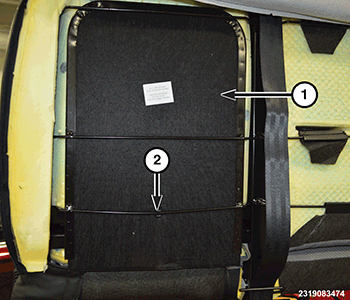

  7. Fold the armrest down and remove the screws (1).
  8. Using a trim stick or equivalent, lift at the front (3) of the armrest top cover (2) and remove.

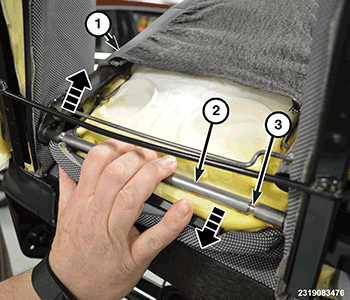

    GC0173219Courtesy of CHRYSLER GROUP, LLC
  9. Remove the armrest by pulling back on the release bar (2), and pulling the armrest forward.
    NOTE:

    There are springs at the notches (3), and can be removed to make the armrest removal easier.

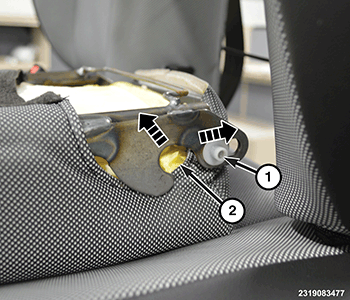

    GC0173221Courtesy of CHRYSLER GROUP, LLC
  10. This graphic is for clarity of how the release bar (1) needs to be released, and the direction of removal for the armrest pivot (2).
