Panel, C-Pillar Trim, Upper: Removal

GC0160712Courtesy of CHRYSLER GROUP, LLC
  1. Remove the push fastener (3) from the lower C-pillar trim (1).
  2. Remove the screw fastener (2) and the lower C-pillar trim.

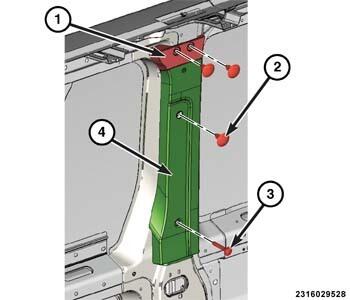

    GC0160240Courtesy of CHRYSLER GROUP, LLC
  3. Remove the screw fastener (3) from the upper C-pillar trim (4).
  4. Remove the push fasteners (2) then remove the upper C-pillar trim.
