Panel, C-Pillar Trim, Lower: Removal

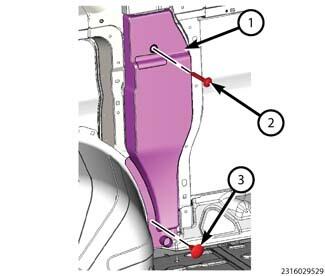

GC0160712Courtesy of CHRYSLER GROUP, LLC
  1. Remove the screw fastener (2).
  2. Remove the push fastener (3) then remove the lower C-pillar trim (1).
