Lower Glove Box

Courtesy of CHRYSLER GROUP, LLC

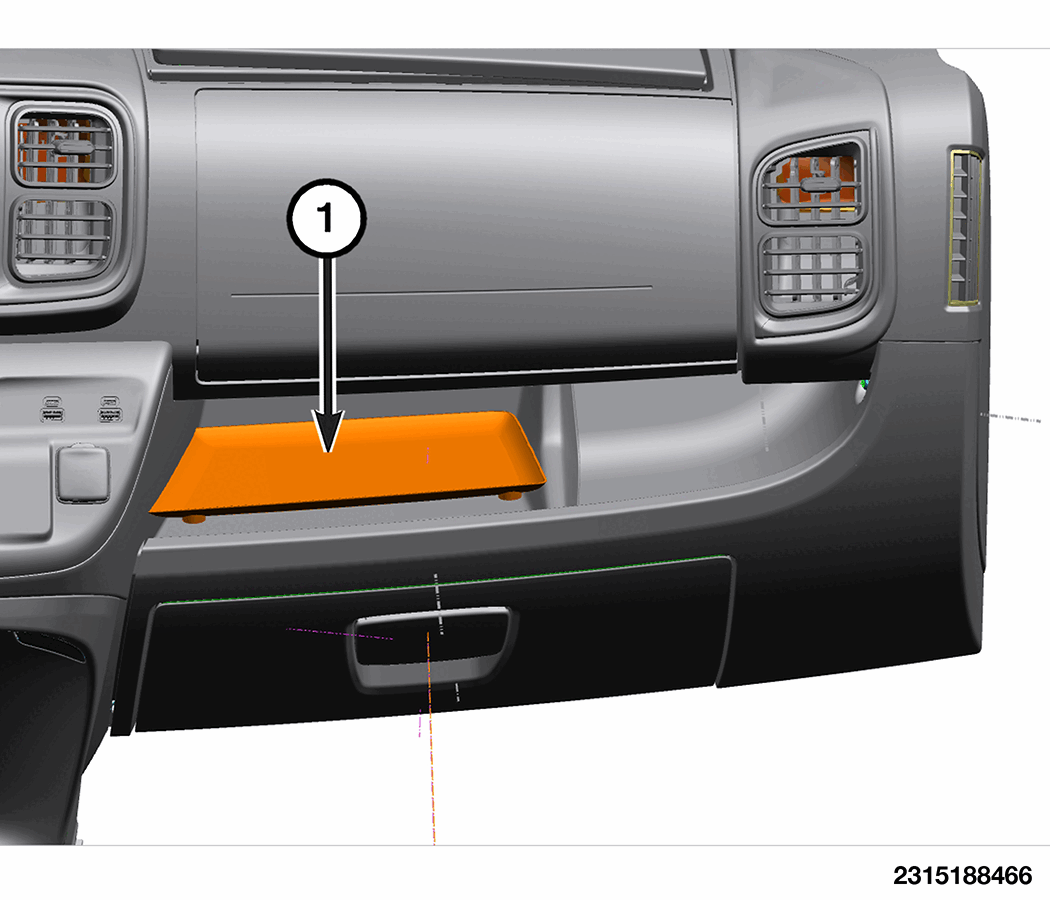

Remove the bin mat (1).

Courtesy of CHRYSLER GROUP, LLC

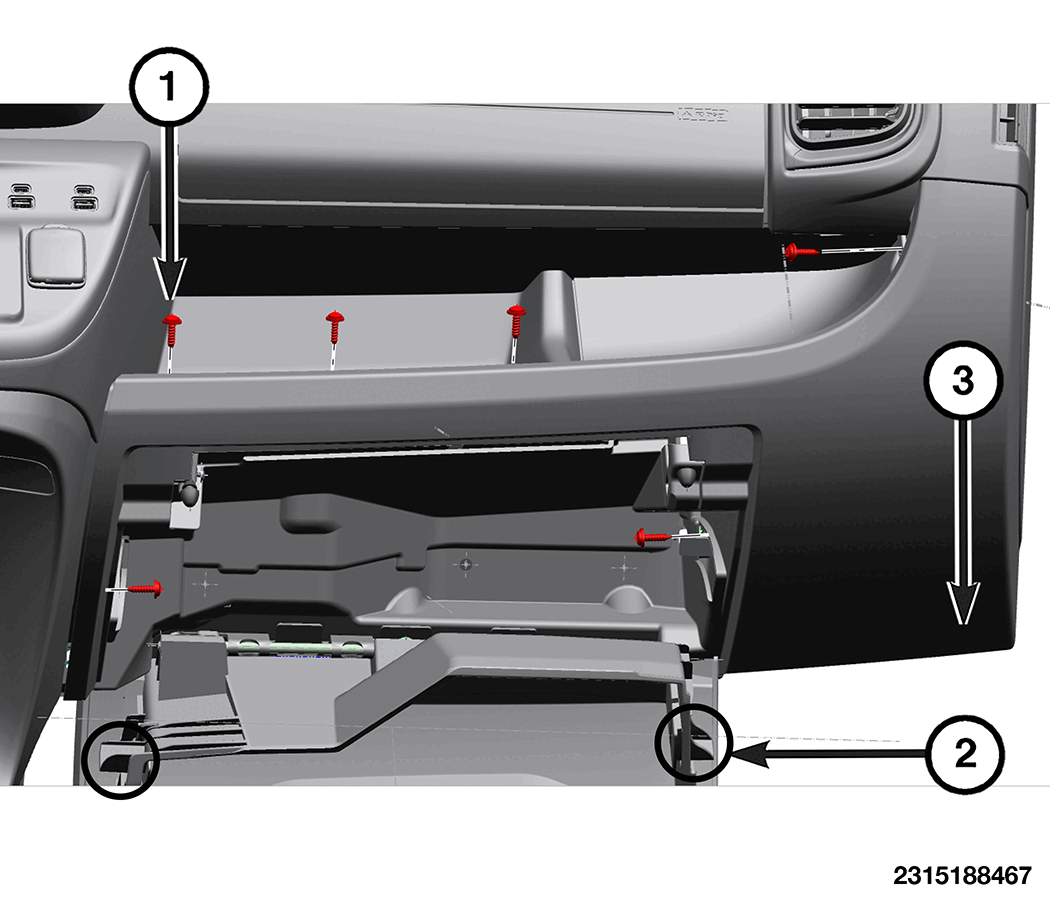

Open the glove box door. Pull the release tabs (2) inward and release the door into the full down position.
Remove the fasteners (1) from the glove box assembly (3).

Courtesy of CHRYSLER GROUP, LLC

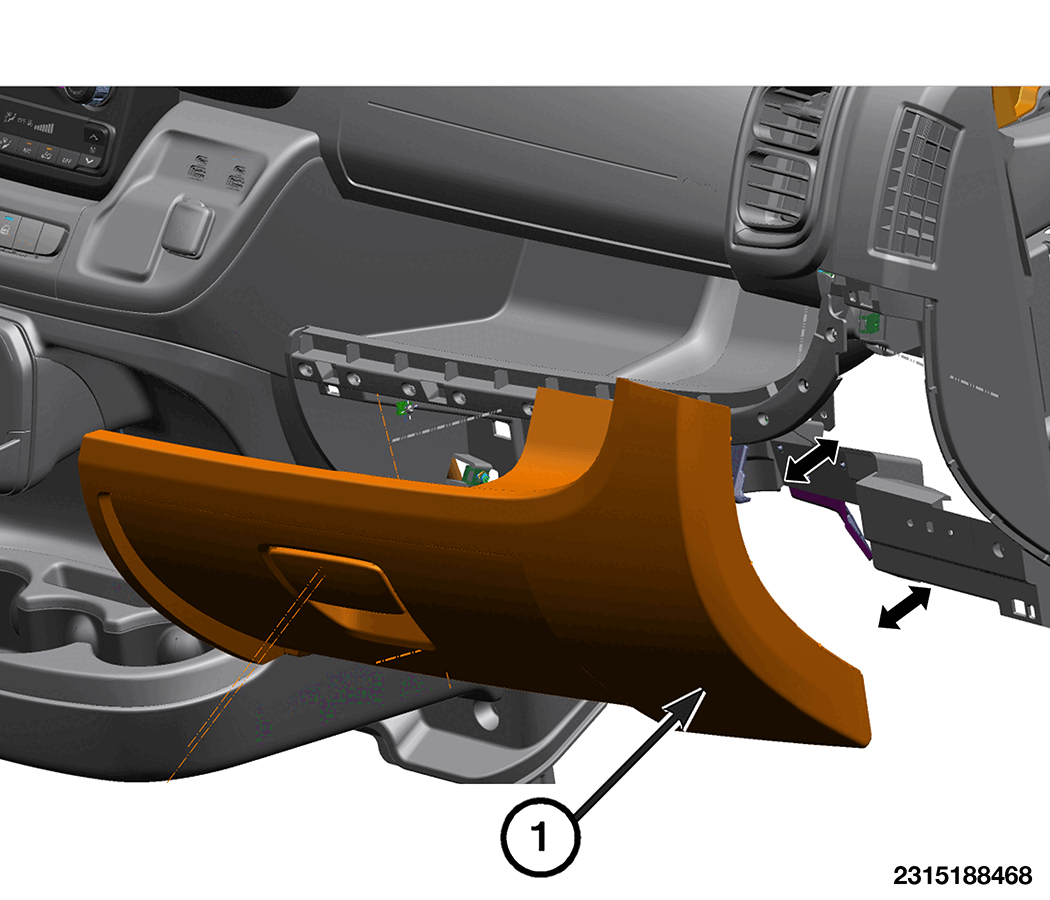

Using a trim stick or equivalent, release the glove box assembly (1) from the instrument panel.
If equipped, disconnect the wire harness connectors.
Remove the glove box assembly (1) from the vehicle.
