Rear Molding

GC0160554Courtesy of CHRYSLER GROUP, LLC

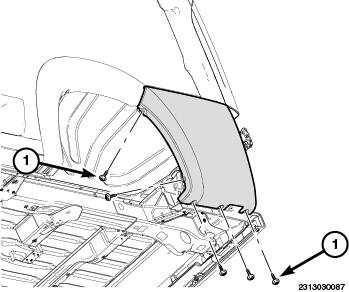

  1. Remove the fasteners (1).
    GC0160502Courtesy of CHRYSLER GROUP, LLC

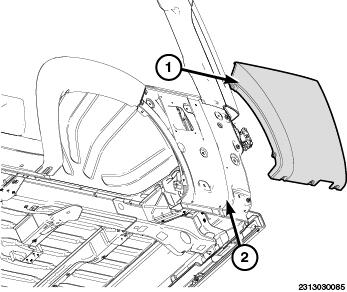

  2. Separate the rear molding (1) from the body (2) and remove.
