Front Molding

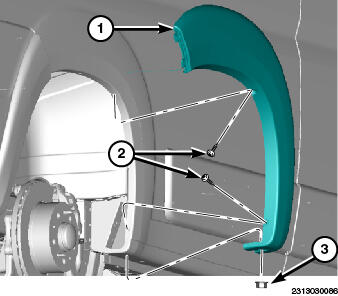

GC0160569Courtesy of CHRYSLER GROUP, LLC
  1. Remove the fasteners (2).
  2. Remove the fastener (3).
  3. Remove the molding (1).
