Front Fascia Molding

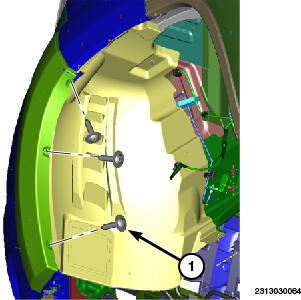

GC0160608Courtesy of CHRYSLER GROUP, LLC
  1. Remove the fasteners (1) securing the wheel house splash shield to the flare.
  2. Using a trim stick or equivalent, release the push-pin fasteners attaching the molding to the fascia and remove the molding.

    (special tool #C-4755, Trim Stick)
