Molding, Body Side: Removal

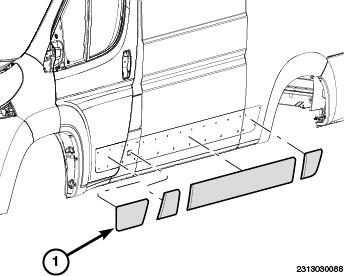

GC0160640Courtesy of CHRYSLER GROUP, LLC
  1. Using a trim stick or equivalent, release the push-pin fasteners attaching the molding and remove the molding (1).

    (special tool #C-4755, Trim Stick)
