Inlet, Fresh Air: Removal

  1. Remove the cabin air filter. Refer to FILTER, CABIN AIR, REMOVAL .

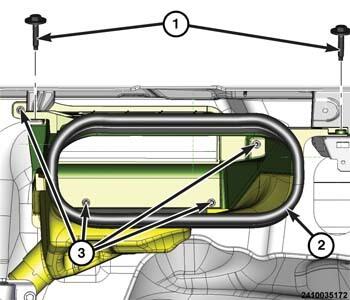

    GC0161928Courtesy of CHRYSLER GROUP, LLC
  2. Remove two upper mounting bolts (1) from the fresh air inlet housing (2).
  3. Remove the four lower mounting screws (3) from the fresh air inlet housing.

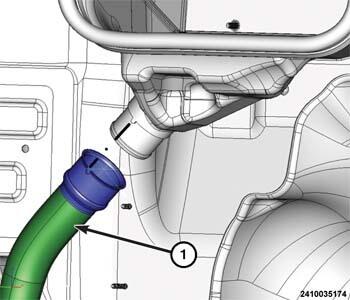

    GC0161854Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the drain tube (1) from the fresh air inlet housing and remove the housing.
