Fender, Front: Removal

GC0160673Courtesy of CHRYSLER GROUP, LLC
  1. Remove the fascia. Refer to FASCIA, FRONT, REMOVAL .
  2. Remove the front lamp units. Refer to UNIT, FRONT LAMP, REMOVAL .
  3. Remove the cowl panel. Refer to COVER, COWL PANEL, REMOVAL .

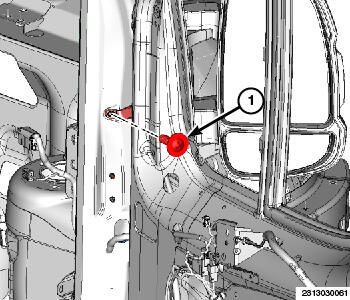

  4. With the door open, remove the fastener (1) attaching the outer mirror trim.
    GC0160285Courtesy of CHRYSLER GROUP, LLC

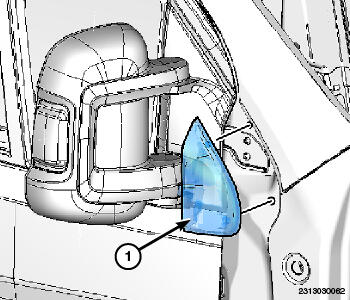

  5. Release the push pin fasteners and remove the mirror trim (1).
    GC0160199Courtesy of CHRYSLER GROUP, LLC
  6. Remove the fender molding. Refer to MOLDING, REAR WHEEL OPENING, REMOVAL .

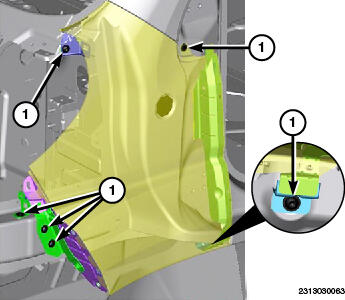

  7. Remove the fasteners (1) and remove the fender.
