Door, Fuel Fill: Removal

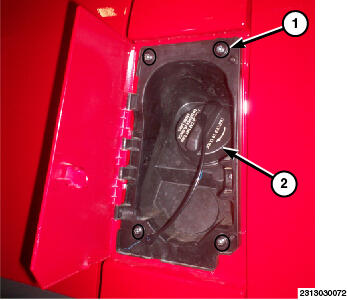

GC0160550Courtesy of CHRYSLER GROUP, LLC
  1. Open the door assembly and remove the fuel filler cap (2).
  2. Remove the four fasteners (1) and remove the fuel filler door.
