Bezel, Headlamp Lower: Removal

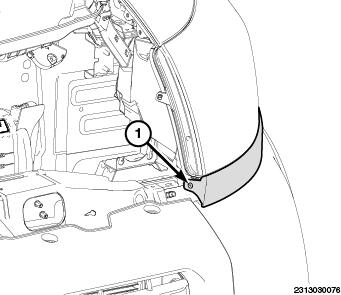

GC0160651Courtesy of CHRYSLER GROUP, LLC
  1. Open the hood and remove the fastener (1).

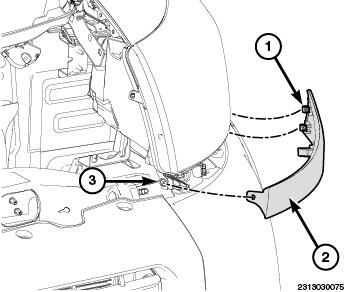

    GC0160248Courtesy of CHRYSLER GROUP, LLC
  2. Separate the bezel (2) and release the rear clips (1).
