Home >> Dodge and Ram >> 2023 >> ProMaster 2500 >> Repair and Diagnosis >> Electrical >> Gauges >> Body - Interior & Exterior (1 Of 2) >> Doors - Sliding >> Socket, Stabilizer >> Removal

Socket, Stabilizer: Removal

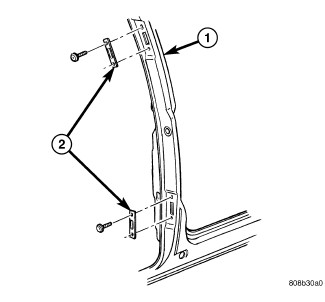

GC0126031Courtesy of CHRYSLER GROUP, LLC
  1. Open sliding door.
  2. Remove screws holding stabilizer socket to B-pillar (1).
  3. Remove stabilizer socket (2) from vehicle.
