Doors - Sliding: Latch: Removal

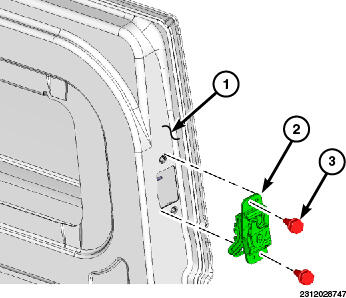

GC0160535Courtesy of CHRYSLER GROUP, LLC
  1. Open the sliding door.
  2. Remove the fasteners (3) and separate the upper latch (2) from the door (1).

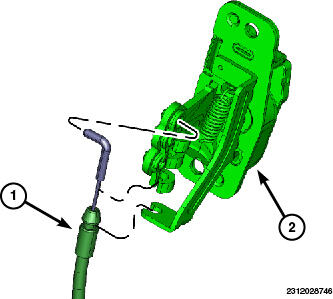

    GC0160703Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the latch cable (1) from the latch (2).
