Hinge, Lower: Removal
- Open sliding door.
- Mark outline of roller arm on sliding door to aid installation.
- Protect painted areas with tape.
- Disconnect the hold open latch cable (1).
- Support sliding door on a suitable lifting device with a padded upper surface.

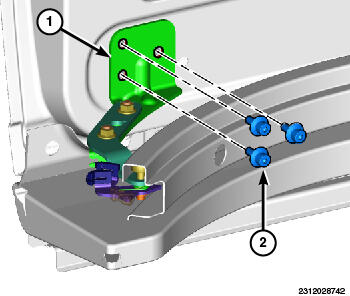

- Remove bolts (2) attaching lower roller arm (1) to sliding door.

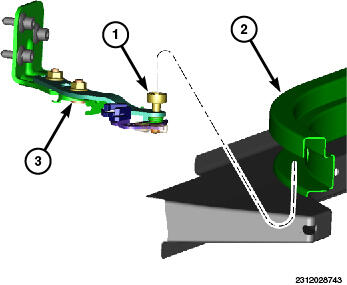

- Remove roller arm (3) from rear of channel (2).
