Hinge, Center: Removal
- Open sliding door to the mid point of its travel.
- Remove rear end plate on center track.
- Support sliding door on a suitable lifting device.
- Mark outline of center hinge of inner door panel to aid installation.

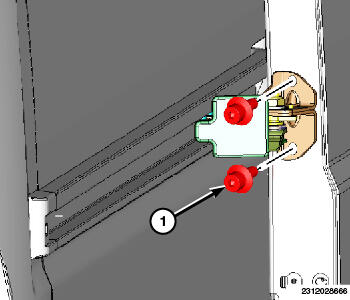

- Remove bolts (1) attaching center hinge to sliding door.

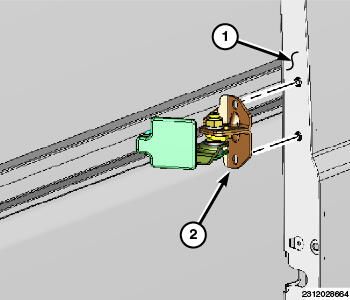

- Remove center hinge (2) from sliding door (1).
- Roll center hinge to rear of roller channel and remove from vehicle.
