Board, Switch Contact: Removal

  1. Fully open the sliding door.
  2. Disconnect and isolate the negative battery cable.
    GC0176867Courtesy of CHRYSLER GROUP, LLC

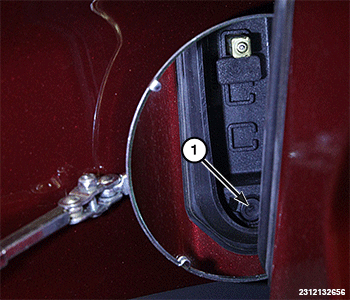

  3. Remove the plastic push-pin (1) from the contact switch board and remove the switch from the door.
    GC0176879Courtesy of CHRYSLER GROUP, LLC

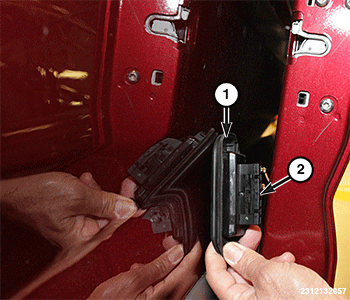

  4. Disconnect the switch wiring harness connector (2) and remove the switch (1).
