Hinge, Door: Removal
NOTE:
It is not necessary to remove the door to replace the hinges if they are replaced one at a time.

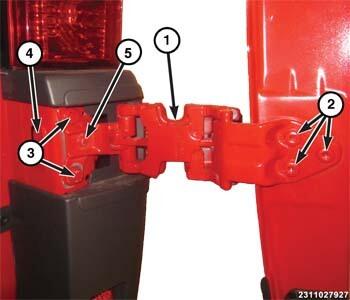

- Using a grease pencil or equivalent, mark the location of the rear door hinge (1) on the door and body to aid installation.
- Support the door with a suitable lifting device.
- Remove bolts (2) from the door.
- Remove bolts (3) from the body.
- Remove the anti-theft bolt (5) from the opening (4) in the body and remove the rear door hinge.
