Doors - Rear: Handle: Removal

GC0160558Courtesy of CHRYSLER GROUP, LLC
  1. Remove the push fasteners (2) then the rear door trim panel (1).
    GC0203877Courtesy of CHRYSLER GROUP, LLC

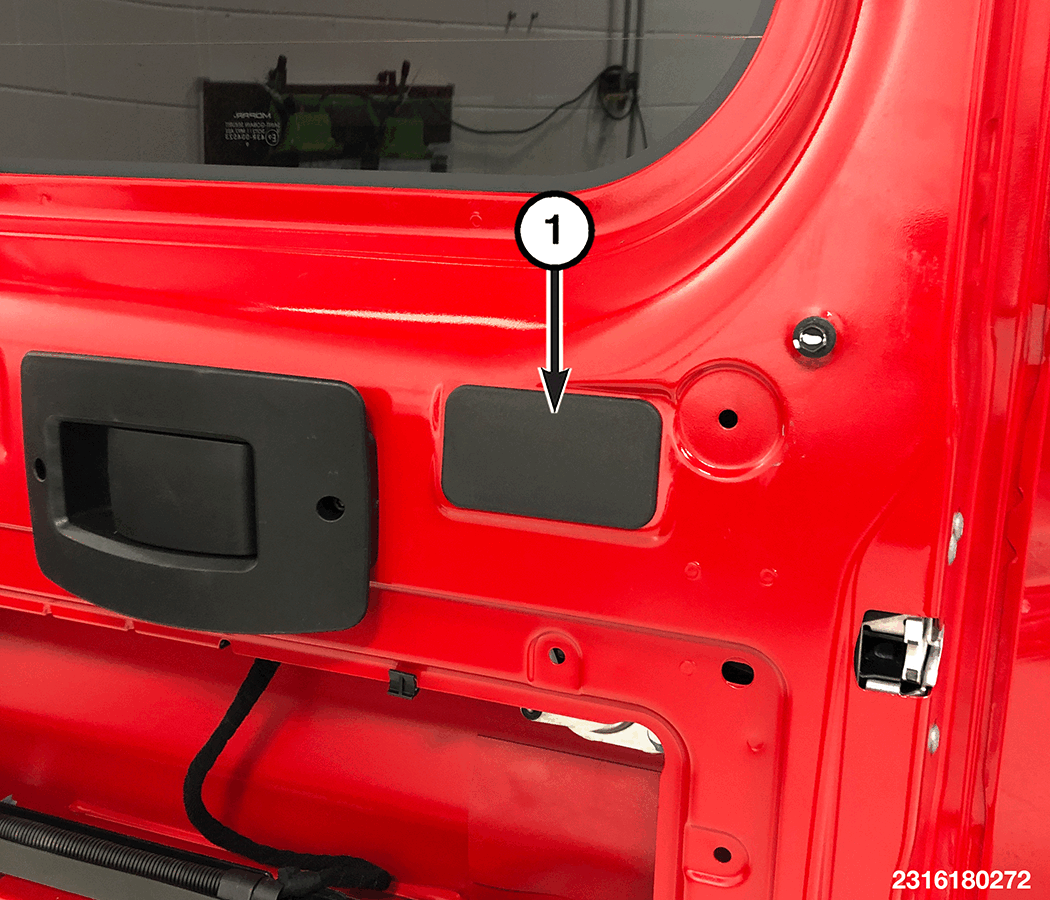

  2. Remove the cover (1) to gain access to the latch release cable and nuts.
    GC0160701Courtesy of CHRYSLER GROUP, LLC

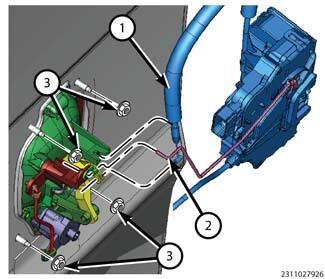

  3. Release the lock rod (2) from the door handle (3).
  4. Disconnect the latch release cable (1) from the door handle.
  5. Remove the nuts (3) and the door handle.
  6. If equipped with passive entry, disconnect the wire harness connector.
