Door, Rear: Adjustments

NOTE:

Door adjustment measurements should be taken from stationary or welded body panels like the roof, rocker or quarter panels.
During adjustment procedures, it is recommended that all the hinge fasteners be loosened except for the upper most fasteners.
Adjustments can be made using the upper fasteners to hold the door with final torque of the fasteners occurring after correct door positioning is achieved.
A suitable body sealant should be used when removing or moving the hinges.

Courtesy of CHRYSLER GROUP, LLC

Fore/Aft Adjustment

Support the door with a suitable lifting device.
Loosen the door latch striker as necessary. Refer to STRIKER, DOOR LATCH, ADJUSTMENTS .
NOTE:

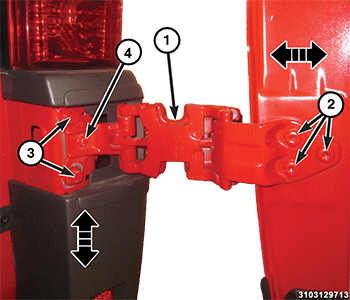

Lower door hinge shown in illustration. Upper door hinge similar.
Loosen the bolts (2) on the door side of the hinge (1).
Adjust the door to the correct position. Refer to GAP AND FLUSH, SPECIFICATIONS .
Tighten the bolts (2) to proper specifications.
Refer to TORQUE SPECIFICATIONS .
Adjust and tighten the door latch strikers as necessary. Refer to STRIKER, DOOR LATCH, ADJUSTMENTS .

Courtesy of CHRYSLER GROUP, LLC

Up/Down Adjustment

Support the door with a suitable lifting device.
Loosen the door latch striker as necessary. Refer to STRIKER, DOOR LATCH, ADJUSTMENTS .
NOTE:
Lower door hinge shown in illustration. Upper door hinge similar.
Loosen the bolts (3 and 4) on the body side of the hinge (1) on the upper and lower hinges.
Adjust the door to the correct position. Refer to GAP AND FLUSH, SPECIFICATIONS .
Tighten the bolts (3 and 4) to proper specifications.
Refer to TORQUE SPECIFICATIONS .
Adjust and tighten the door latch strikers as necessary. Refer to STRIKER, DOOR LATCH, ADJUSTMENTS .
