Cable, Latch: Removal

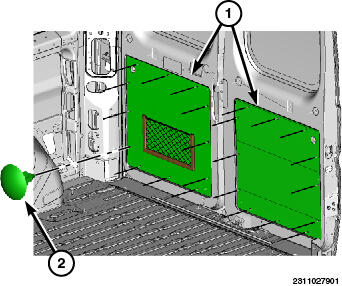

GC0160558Courtesy of CHRYSLER GROUP, LLC
  1. Remove the push fasteners (2) then the rear door trim panel (1).

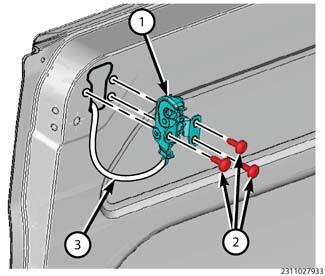

    GC0160512Courtesy of CHRYSLER GROUP, LLC
  2. If necessary to replace the upper latch release cable, remove the screws (2) and separate the upper door latch (1) from the door.
  3. Disconnect the upper latch release cable (3) from the door latch.

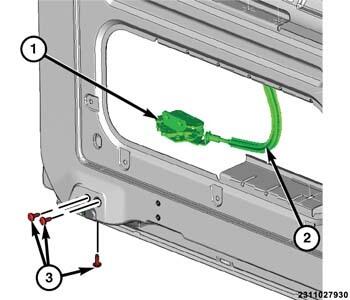

    GC0160634Courtesy of CHRYSLER GROUP, LLC
  4. If necessary to remove the lower latch release cable, remove the bolts (3) and separate the lower door latch (1) from the door.
  5. Disconnect the lower latch release cable (2) from the door latch.

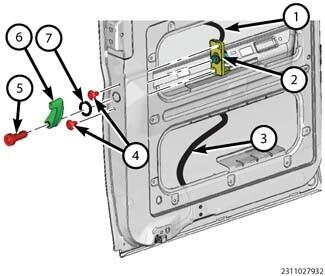

    GC0160555Courtesy of CHRYSLER GROUP, LLC
  6. Remove the screw (5) then the handle (6) and washer (7).
  7. Remove the bolts (4) and separate the latch linkage (2) from the door.
  8. Disconnect the upper latch release cable (1) or the lower latch release cable (3) from the latch linkage.
