Striker, Door Latch: Removal

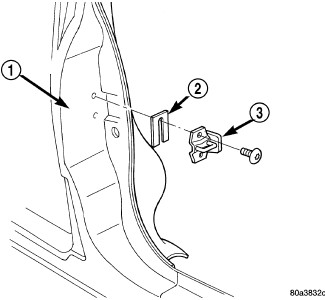

GC0126011Courtesy of CHRYSLER GROUP, LLC
  1. Using a grease pencil or equivalent, mark the installed position of the door latch striker (3) in relationship to the B-pillar (1).
  2. Remove the two fasteners that secure the door latch striker to the B-pillar and remove the striker and any shims (2) that may be present.
