Regulator, Window: Removal

Courtesy of CHRYSLER GROUP, LLC

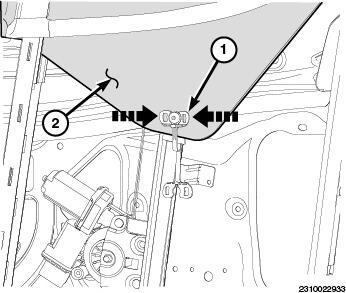

Lower the glass about half way to gain access to the glass retainer (1).
Remove the front door watershield. Refer to WATERSHIELD, REMOVAL .
From the inside of the door assembly, compress the glass retainer (1) together and release the glass (2).
Raise the glass (2) into the full up position and secure in place using tape or equivalent.

Courtesy of CHRYSLER GROUP, LLC

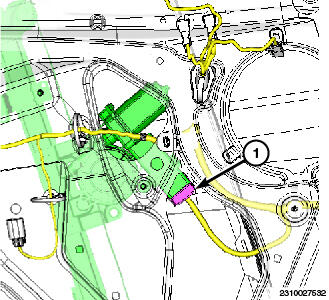

Disconnect the electrical connector (1).

Courtesy of CHRYSLER GROUP, LLC

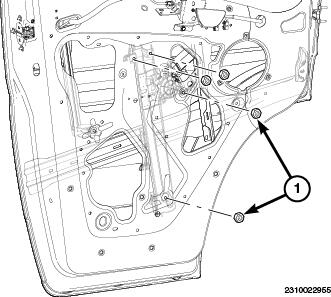

Remove the fasteners (1).

Courtesy of CHRYSLER GROUP, LLC

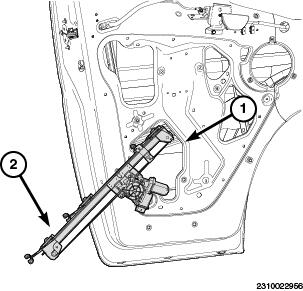

Remove the regulator (2) from the door opening (1).
