Latch, Door: Removal

GC0160227Courtesy of CHRYSLER GROUP, LLC
  1. Remove the watershield. Refer to WATERSHIELD, REMOVAL .
  2. Disconnect the latch cable (1) and lock rod (2).
    GC0160365Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the release cable (1) from the interior handle (2).
    GC0160378Courtesy of CHRYSLER GROUP, LLC

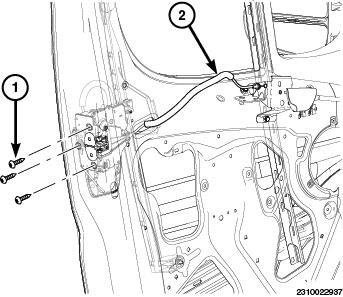

  4. Remove the fasteners (1).
    GC0160257Courtesy of CHRYSLER GROUP, LLC

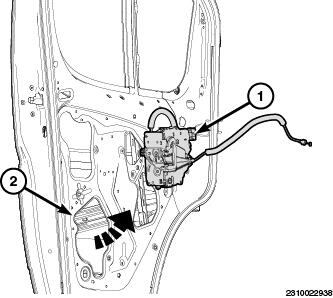

  5. Remove the latch assembly (1) from the door opening (2).
    GC0160290Courtesy of CHRYSLER GROUP, LLC

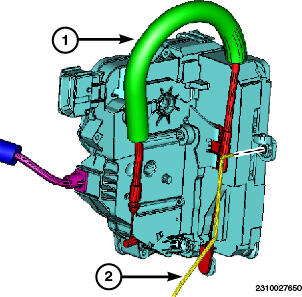

  6. Remove the release cables (1) and lock rod (2) if necessary.
