Handle, Exterior: Removal

  1. Remove the watershield. Refer to WATERSHIELD, REMOVAL .
  2. Remove the access plug.
    GC0160227Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the latch cable (1) and lock rod (2).

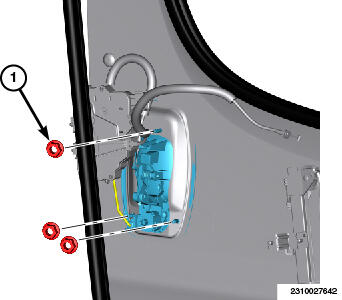

    GC0160692Courtesy of CHRYSLER GROUP, LLC
  4. Remove the fasteners (1) and remove the exterior handle.
  5. If equipped with passive entry, disconnect the wire harness connector.
