Sensor, Wheel Speed, Front: Removal

  1. Remove the front inner splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .

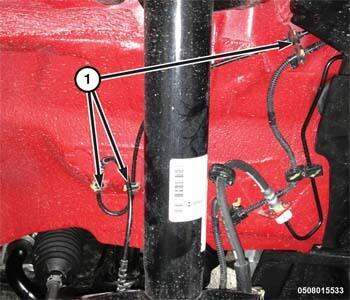

    GC0160210Courtesy of CHRYSLER GROUP, LLC
  2. Unclip wheel speed sensor connector from brackets (1) on the frame rail.
  3. Disconnect vehicle wiring harness from wheel speed sensor connector.
    GC0160330Courtesy of CHRYSLER GROUP, LLC

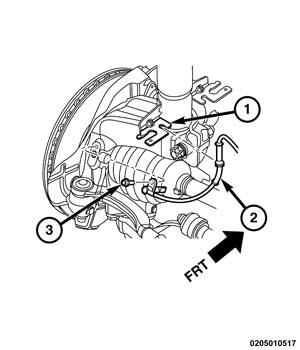

  4. Unclip wheel speed sensor routing (2) from the strut assembly bracket (1).
  5. Remove screw (3) fastening speed sensor (2) head to hub and bearing.
  6. Remove wheel speed sensor from hub and bearing.
